*◊ UNIQUE ORMAN SELF-LOADING PISTOL, WITH CAST ALUMINUM FRAME, PATENT MODEL.

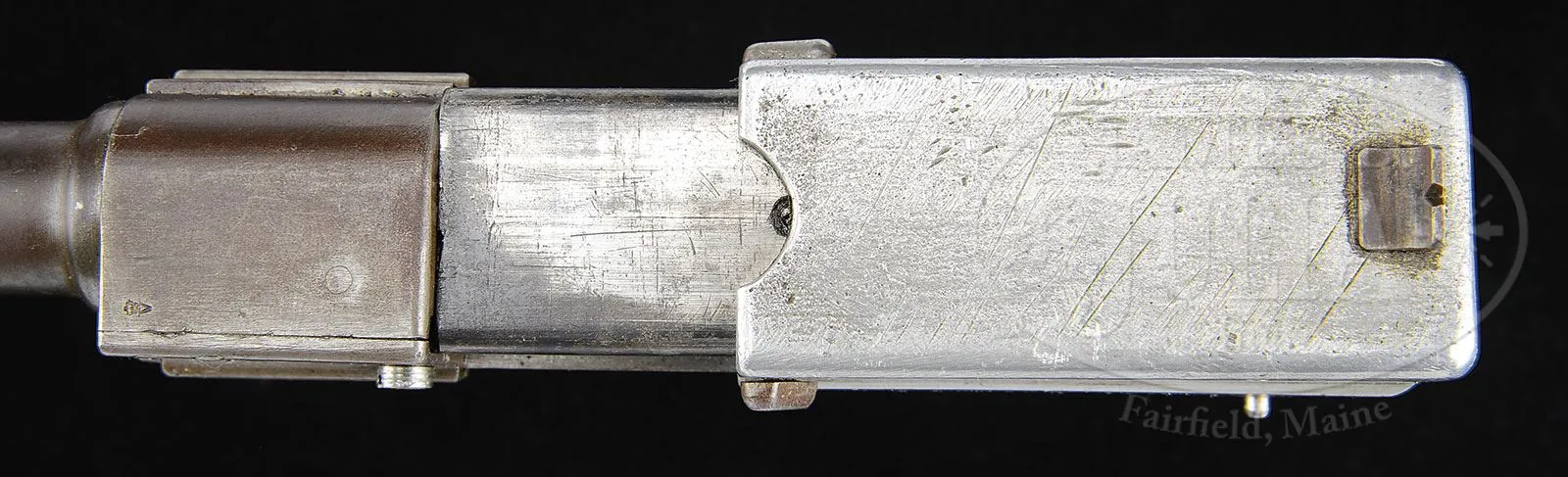

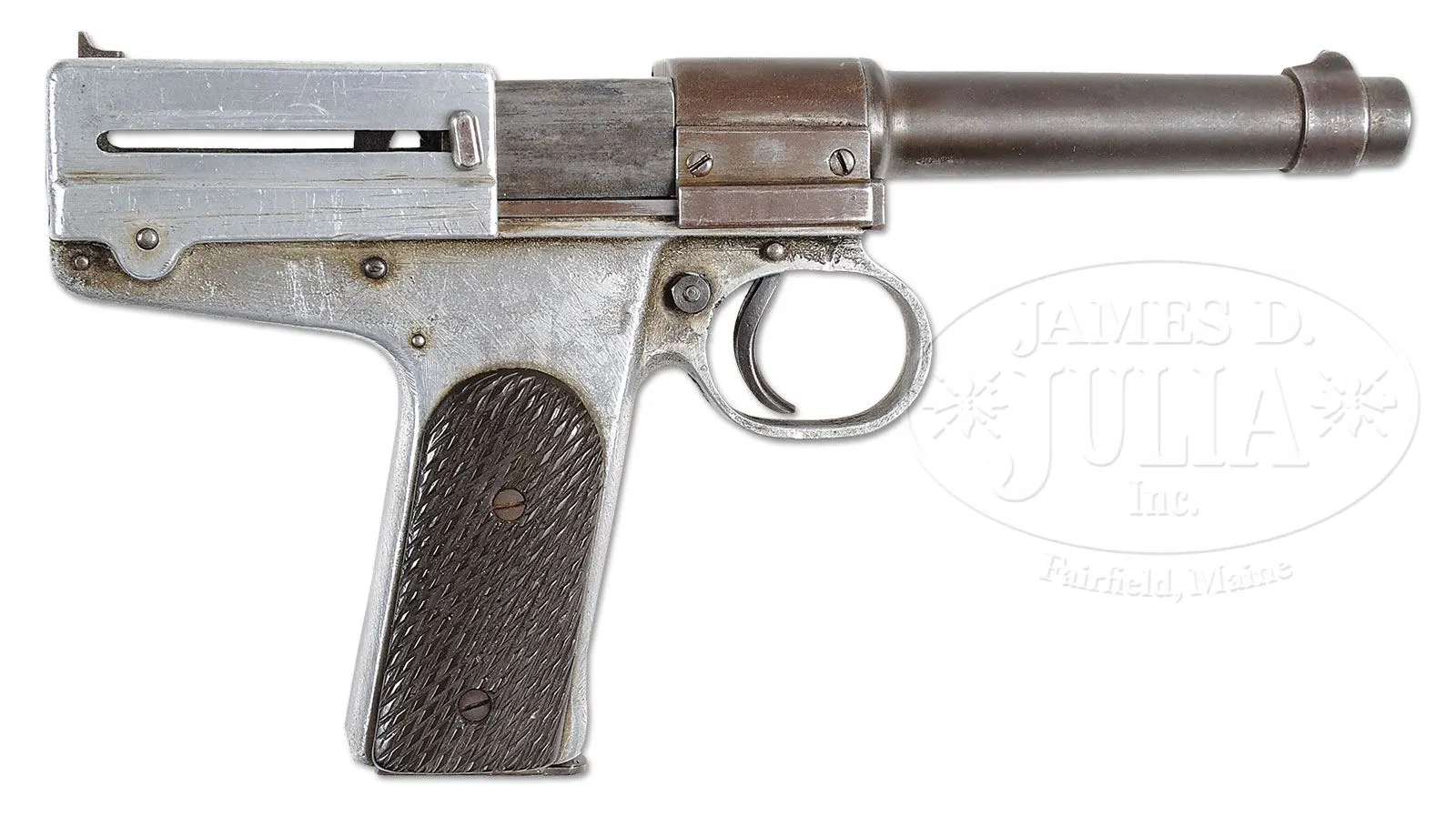

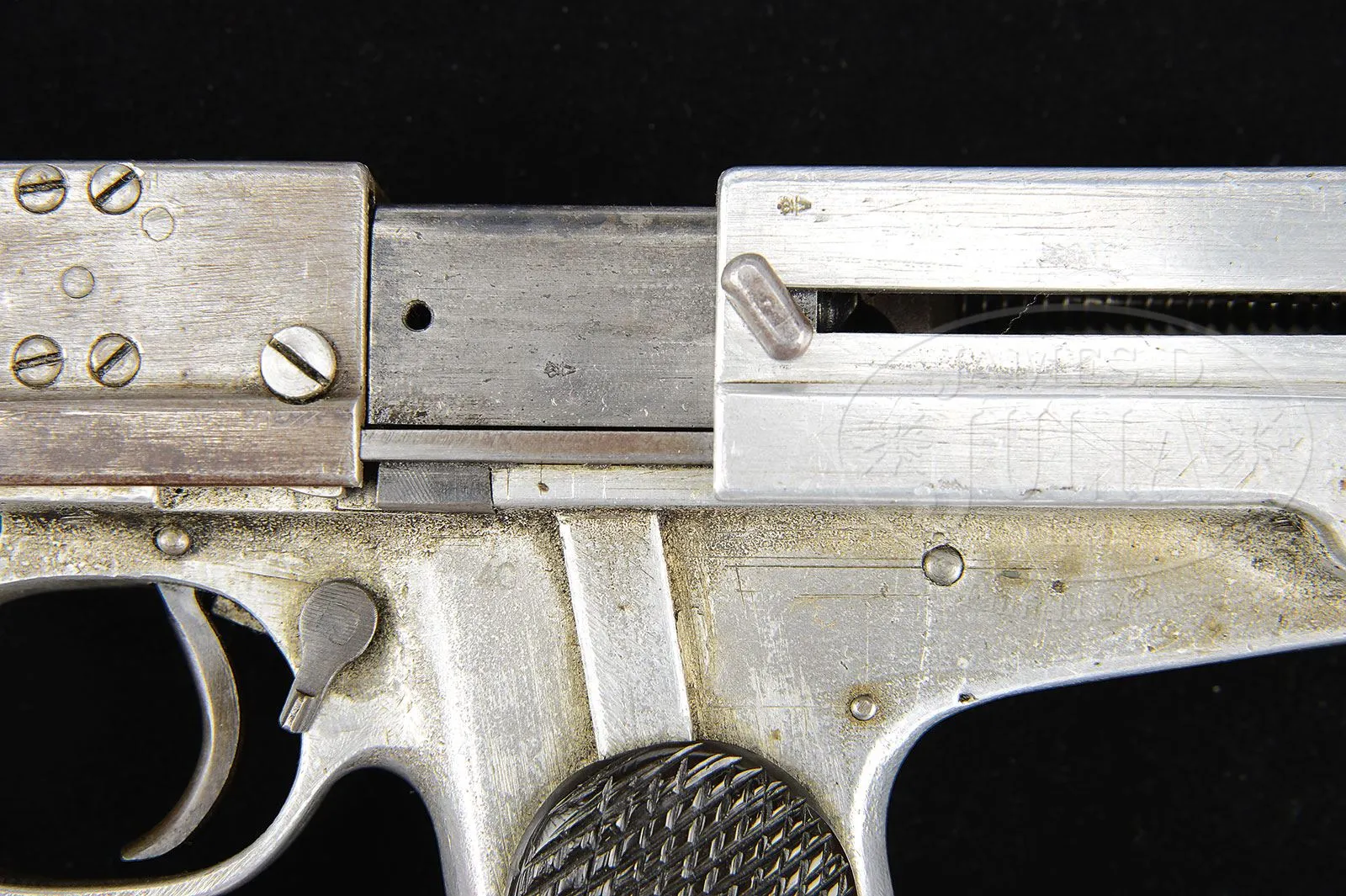

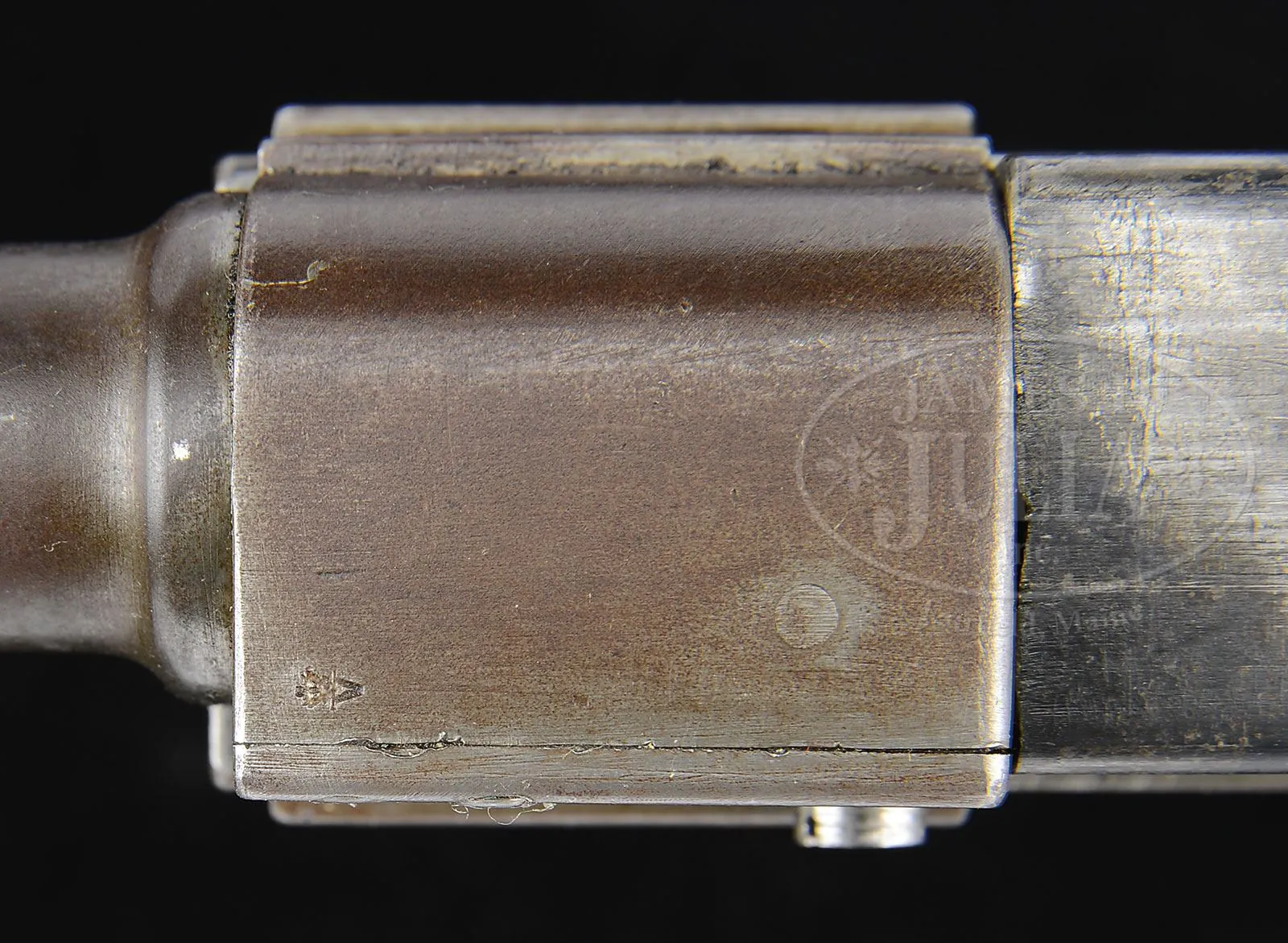

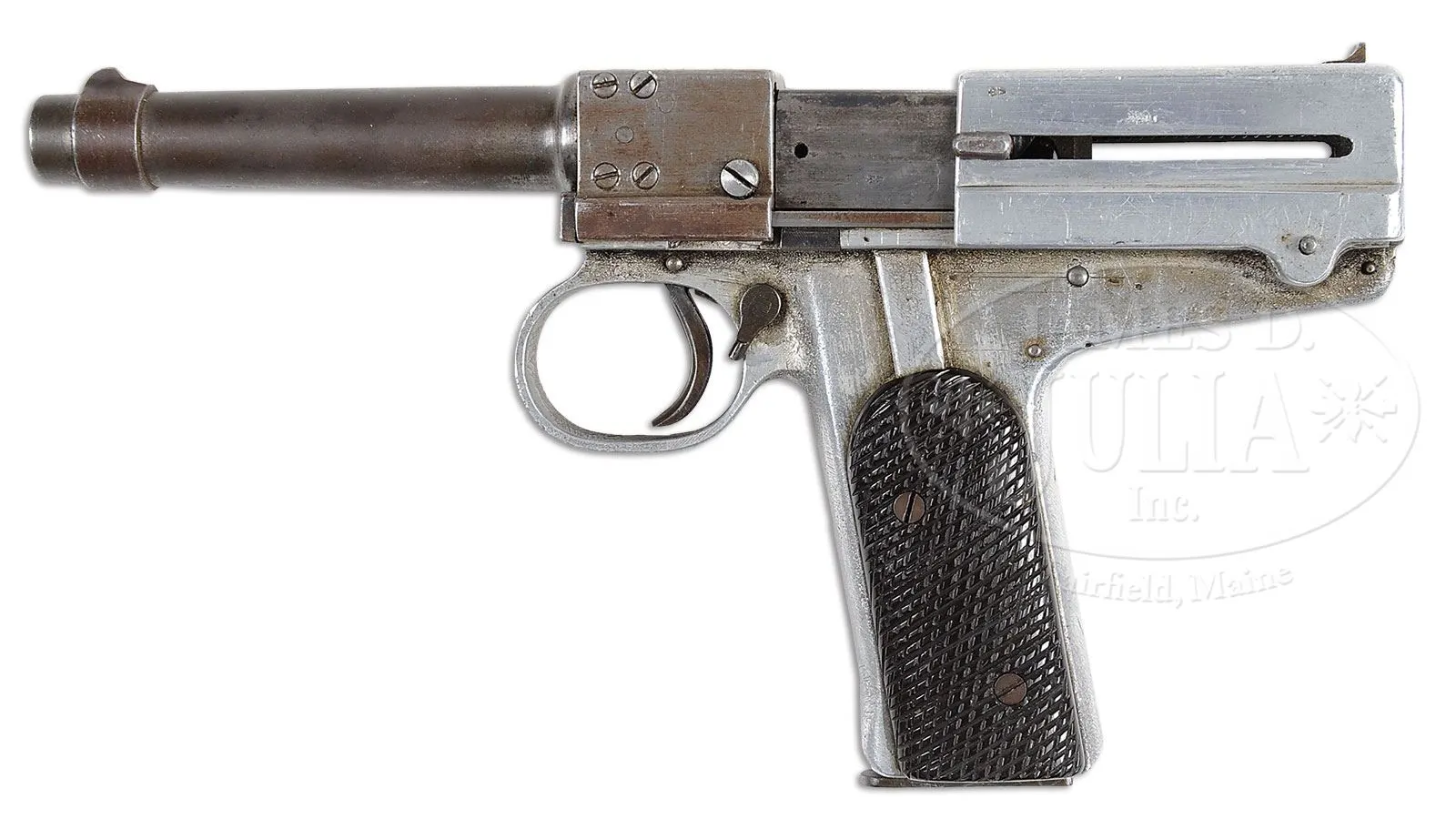

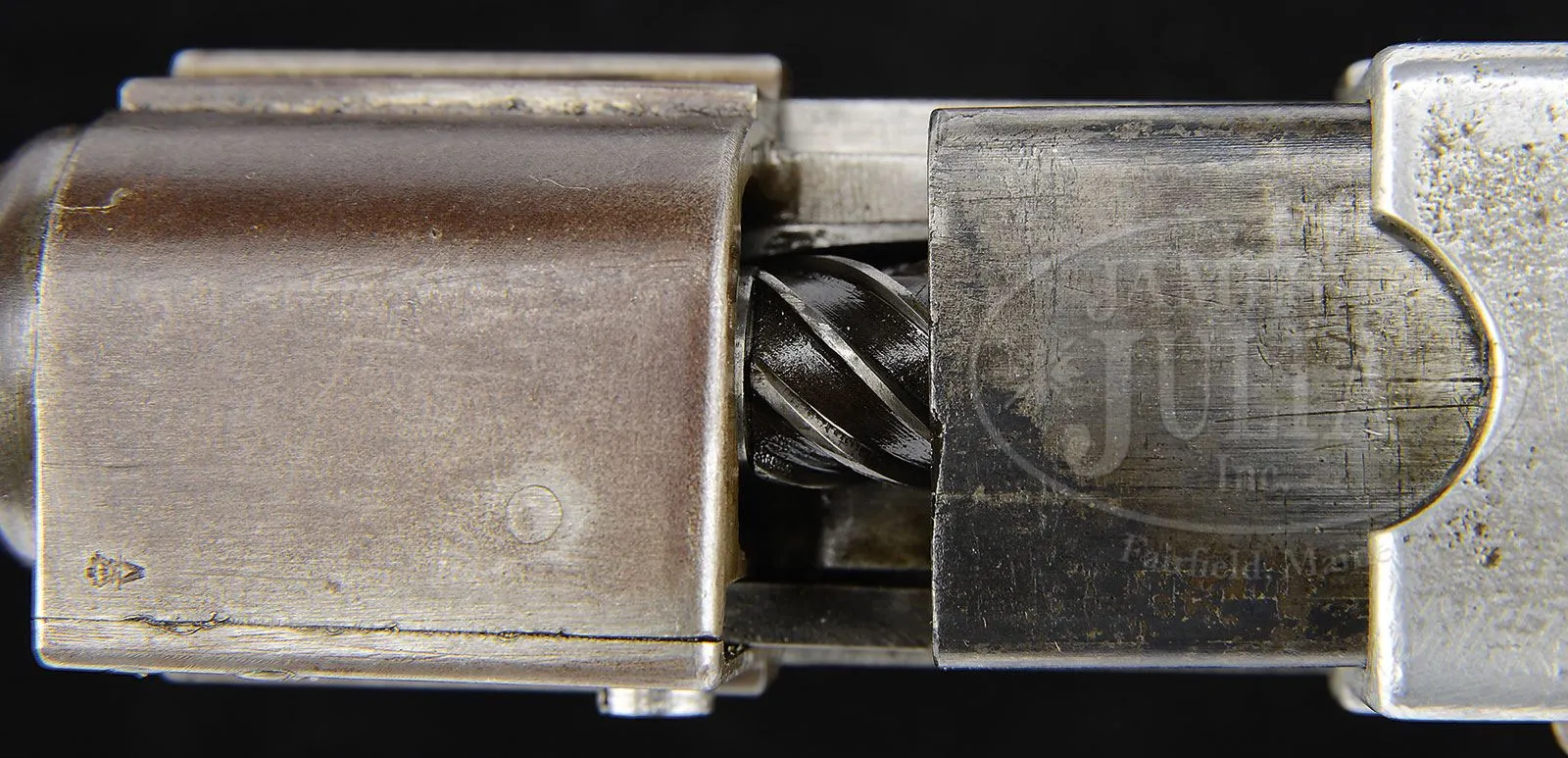

SN 4C. Cal. .45. Very unusual big bore single action semi-automatic pistol, patented by Orman in 1912 under British Patent No. 14746. 4-1/4″ bbl with fixed banded front sight & fixed rear sight. Pistol has no manufacturer markings. SN “4C” was applied to the left frame for purpose of importation. Crown/V London proofs are under the bbl, over the chamber, left side of bolt, and on left side of bolt housing. The two-lug bolt has a threaded shaft that rotates the bolt head for locking & unlocking and slide recoil is assisted by an accelerator lever pivoted on the left side of the barrel mounting block. Another unique feature relates to the cast aluminum used to make the housing for the bolt and frame, this being one of the earliest, if not the first, weapon (1912) to apply light metal technology to firearm manufacture. A rotating safety mounted to left frame, just behind the trigger guard, acts as a trigger block. A modified W&S .455 magazine, drilled with six indicator holes, releases at the butt. A thin guide, pinned to the left side, has a clawed top to retain the follower. Brown hard rubber grips, molded with coarse checkering, are each secured to the frame with two screws. PROVENANCE: Ex Dinely collection. Collection of Dr. Geoffrey Sturgess. CONDITION: The bbl, orig in-the-white, has oxidized to a near uniform brown that also covers the separately constructed barrel mounting/receiver. Bolt has lost much of its orig blue & cast aluminum parts, still with coarse mold markings, have oxidized to varying shades of grey. Most of the orig blue remains on the trigger & safety lever. Excellent grips showing only minor handling. Bright near mirror bore and perfect manual mechanics. 4-52428 LMA112 (5,000-10,000) – Lot 1306

Auction: Firearms - Fall 2014

Please Note: All prices include the hammer price plus the buyer’s premium, which is paid by the buyer as part of the purchase price. The prices noted here after the auction are considered unofficial and do not become official until after the 46th day.

Image	Lot	Price	Description
	1306	$0.00	Revised: 9/15/2014 Estimate should be $7,500-$10,000. ◊ UNIQUE ORMAN SELF-LOADING PISTOL, WITH CAST ALUMINUM FRAME, PATENT MODEL. SN 4C. Cal. .45. Very unusual big bore single action semi-automatic pistol, patented by Orman in 1912 under British Patent No. 14746. 4-1/4″ bbl with fixed banded front sight & fixed rear sight. Pistol has no manufacturer markings. SN “4C” was applied to the left frame for purpose of importation. Crown/V London proofs are under the bbl, over the chamber, left side of bolt, and on left side of bolt housing. The two-lug bolt has a threaded shaft that rotates the bolt head for locking & unlocking and slide recoil is assisted by an accelerator lever pivoted on the left side of the barrel mounting block. Another unique feature relates to the cast aluminum used to make the housing for the bolt and frame, this being one of the earliest, if not the first, weapon (1912) to apply light metal technology to firearm manufacture. A rotating safety mounted to left frame, just behind the trigger guard, acts as a trigger block. A modified W&S .455 magazine, drilled with six indicator holes, releases at the butt. A thin guide, pinned to the left side, has a clawed top to retain the follower. Brown hard rubber grips, molded with coarse checkering, are each secured to the frame with two screws. PROVENANCE: Ex Dinely collection. Collection of Dr. Geoffrey Sturgess. CONDITION: The bbl, orig in-the-white, has oxidized to a near uniform brown that also covers the separately constructed barrel mounting/receiver. Bolt has lost much of its orig blue & cast aluminum parts, still with coarse mold markings, have oxidized to varying shades of grey. Most of the orig blue remains on the trigger & safety lever. Excellent grips showing only minor handling. Bright near mirror bore and perfect manual mechanics. 4-52428 LMA112 (5,000-10,000) – Lot 1306 Auction: Firearms - Fall 2014 Please Note:* All prices include the hammer price plus the buyer’s premium, which is paid by the buyer as part of the purchase price. The prices noted here after the auction are considered unofficial and do not become official until after the 46th day.
